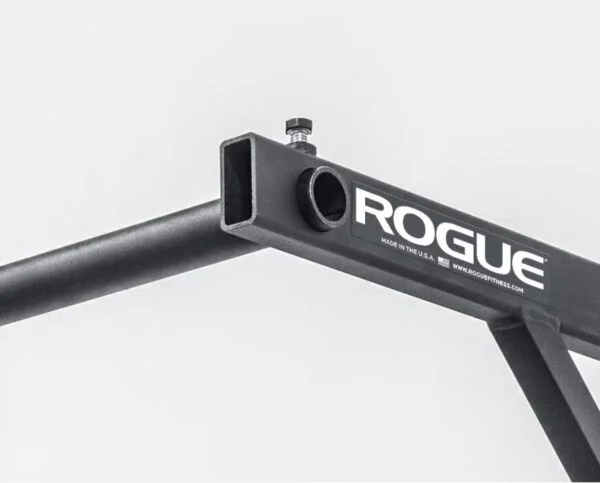

Rogue P-4 Pull-up System

Manufactured in Ohio using the same 1×2″ 11-Gauge Steel as our full-scale rigs and racks, the versatile Rogue P-4 Pull-Up System is a single, compact unit optimized for wall mounts and ceiling mounts*. Once anchored securely to concrete or wood studs, the P-4’s pull-up bar will be positioned at a 30″ depth from the wall/ceiling. That’s 8″ more than the depth of the P-3 Pull-up system, allowing more room for kipping movements.

The complete P-4 Pull-Up System comes standard with a 52″ Pull-Up Bar, and can serve as a dependable rings station, as well. If you want to expand the set-up for more athletes, you can daisy-chain additional brackets together by spacing them out 3-4 feet apart, then running a single 1″ steel tube/1.25″ OD pipe through all of the brackets (5 brackets, for example, would create a 16-foot pull-up bar). In most cases, this type of pipe can be purchased at your local hardware store.

*For ceiling mounts, the P-4 is often the best option if your ceiling height is above 9’6″. If the height is between 8′ and 9’6″, a P-3 System could be a better option.

Specifications:

• 1×2″ 11-Gauge Steel
• Depth: 30″ from wall/ceiling
• Width: Can be set on 16″ Stud Centers or custom width up to 48″ between brackets
• Total Length: You can add brackets for miles by putting brackets in a row. 1″/1.25″ Pipe can be purchased from local tube supplier in 24′ lengths.
• Orientation: This unit can be setup vertically or horizontally, our unique support arm will keep this rig sturdy!
• Mounting Hardware NOT included.

Recommended Setups:

• Distance between brackets: Concrete – 36″, Wood Studs – 32″ or 48″
• Height: 7′ 6″ – 8′ on center of bar but this can be adjusted based on ceiling height or athlete height
